Brand Name : Infineon
Model Number : FZ1600R17HP4B21BOSA2
Certification : CE, GCF, ROHS
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, Western Union,
Supply Ability : 1000pcs per month
Delivery Time : 3-5 working days after received the payment
Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Rated voltage AC IEC : 690 V
Ampere Rating : 125 A
ROHS Compliant : Yes
Product Width : 40 mm
Product Length : 135 mm
Product Height : 64 mm

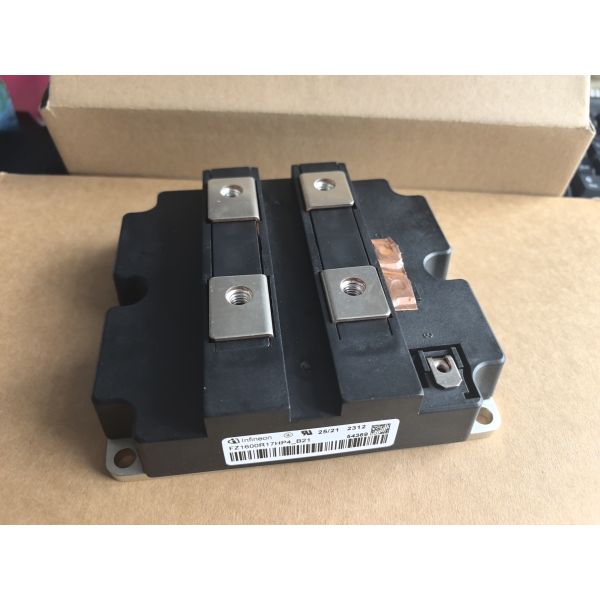

FZ1600R17HP4B2 1700V HiPerFET 4 1600A IGBT High Power Density Low Vce(sat) Fast Switching High Frequency Robust SOA Industrial Grade for UPS and Solar
Features
4 kV AC 1min insulation
AlSiC base plate for increased thermal cycling capability
Package with CTl>400
High creepage and clearance distances
High power and thermal cycling capability
High power density
IHM B housing
Applications
Resonant inverter applications
High power converters
Traction drives
Wind turbines
Description
The FZ1600R17HP4B2 is a high-power IGBT module designed for demanding industrial applications. It is built on advanced IGBT technology, offering a high current rating of 1600A and a voltage class of 1700V. This module is engineered for high efficiency, featuring low collector-emitter saturation voltage (Vce(sat)) and low switching losses, which enables high-frequency operation and superior power density in system design. Its robust construction and high Safe Operating Area (SOA) ensure maximum reliability and long-term performance under strenuous conditions.
INFORMATION
| Category | | |
| Manufacturer | Infineon Technologies | |
| Series | | |
| Packaging | Tray | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | |
| Current - Collector (Ic) (Max) | 1600 A | |
| Power - Max | 10500 W | |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 1600A | |
| Current - Collector Cutoff (Max) | 5 mA | |
| Input Capacitance (Cies) @ Vce | 130 nF @ 25 V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Operating Temperature | -40°C ~ 150°C | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module | |
| Supplier Device Package | Module | |
| Base Product Number |
Drawing
